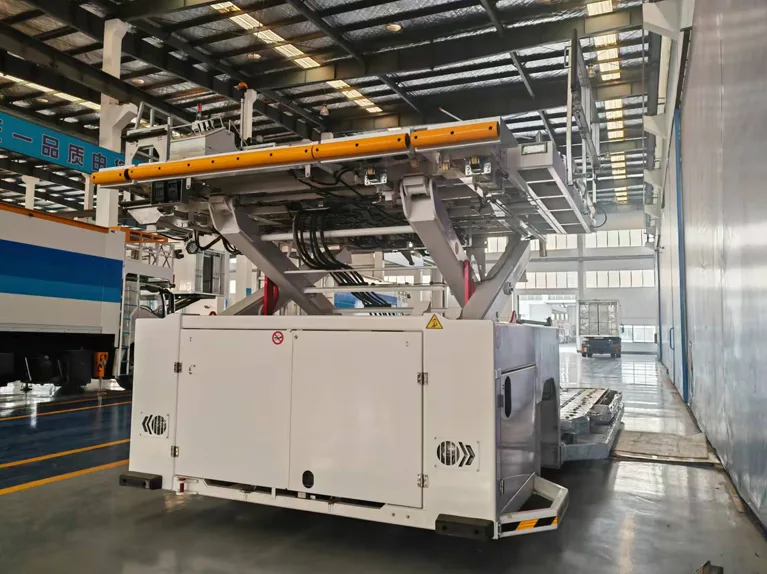

7T container cargo loader main platform
1. The main platform can lift and transport a load of 7000 kg, with a service height ranging from 490 to 3700 mm.
2. It is capable of loading and unloading goods from the rear side and the left and right sides of the main platform using a power transmission method.
3. The main platform is equipped with rubber transmission wheels, universal nylon wheels, and universal wheels for uniform transmission. The hydraulic system drives the rubber transmission wheels, universal nylon wheels, and universal wheels to achieve longitudinal, lateral movement and rotation of the goods, with a transmission speed of 0.3 m/s.
4. At the front, rear, left, and right ends of the main platform, there are automatic or manual control baffles that can adjust the lifting:
1) When the main platform reaches the same height as the bridge platform (parallel position), the front baffle automatically drops;
2) When the main platform descends from the parallel position to the bridge platform, the front baffle automatically rises;
3) When the baffle of the main platform is pressed by containers or plates, the main platform cannot rise more than 1500 mm;
4) When the main platform rises from the lowest position, the baffle automatically rises;
5) On both sides of the main platform, there are guide plates that can independently control the lifting and lowering movements.
