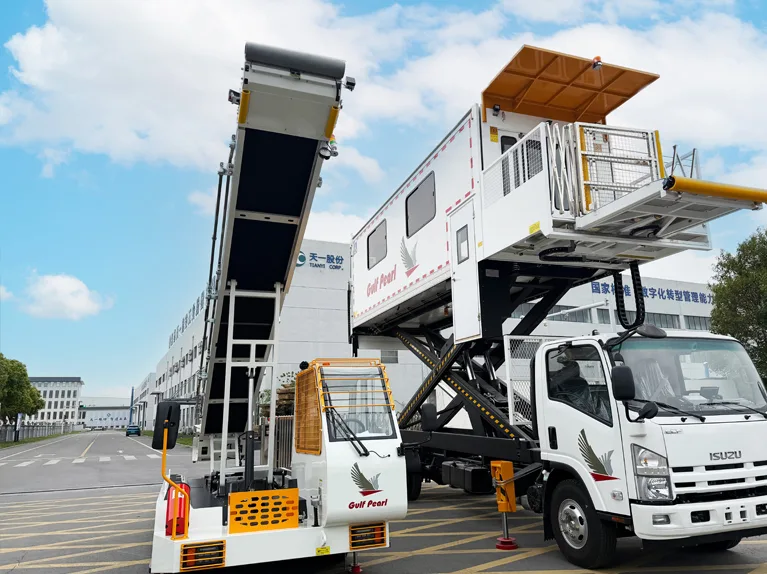

The cab frame of the Airport Self-Propelled Conveyor Belt Loader is made by welding steel plates and profiles. It is equipped with a sunshade and an electronic fan. The driver's seat is a movable one and is equipped with seat belts. The doors are connected to the cab by internal hinges. The periphery of the door frame is sealed with a rubber sealant, ensuring good sealing performance.
The front windshield of the cab is equipped with an electric wiper and a window washing device. Large combined mirrors are installed on both sides. The overall appearance is beautiful, the field of vision is wide, and it has good aerodynamic characteristics.
The cab assembly mainly consists of the instrument panel, steering assembly, wiper assembly and accessories.
Airport Self-Propelled Conveyor Belt Loader Technical Parameters
Vehicle length mm :8240
Vehicle width mm :2000
Vehicle height mm :1600
Wheelbase mm :2900
Wheel distance front/rear mm :1730/1680
Approach Angle ° :12
Departure angle ° :20
Channel outer diameter mm :17000
Vehicle curb weight kg :3200
Front axle mass (unloaded) kg :1800
Rear axle mass (unloaded) kg :1400
Maximum speed km/h :30
Fuel Type :Diesel
Conveyor boom size length X width mm:8000 X 960
Conveyor Belt width mm :700
Conveyor Belt Working height mm :500-4200
Conveyor belt load capacity kg/m:135
